146: chassis frame layout Prefect

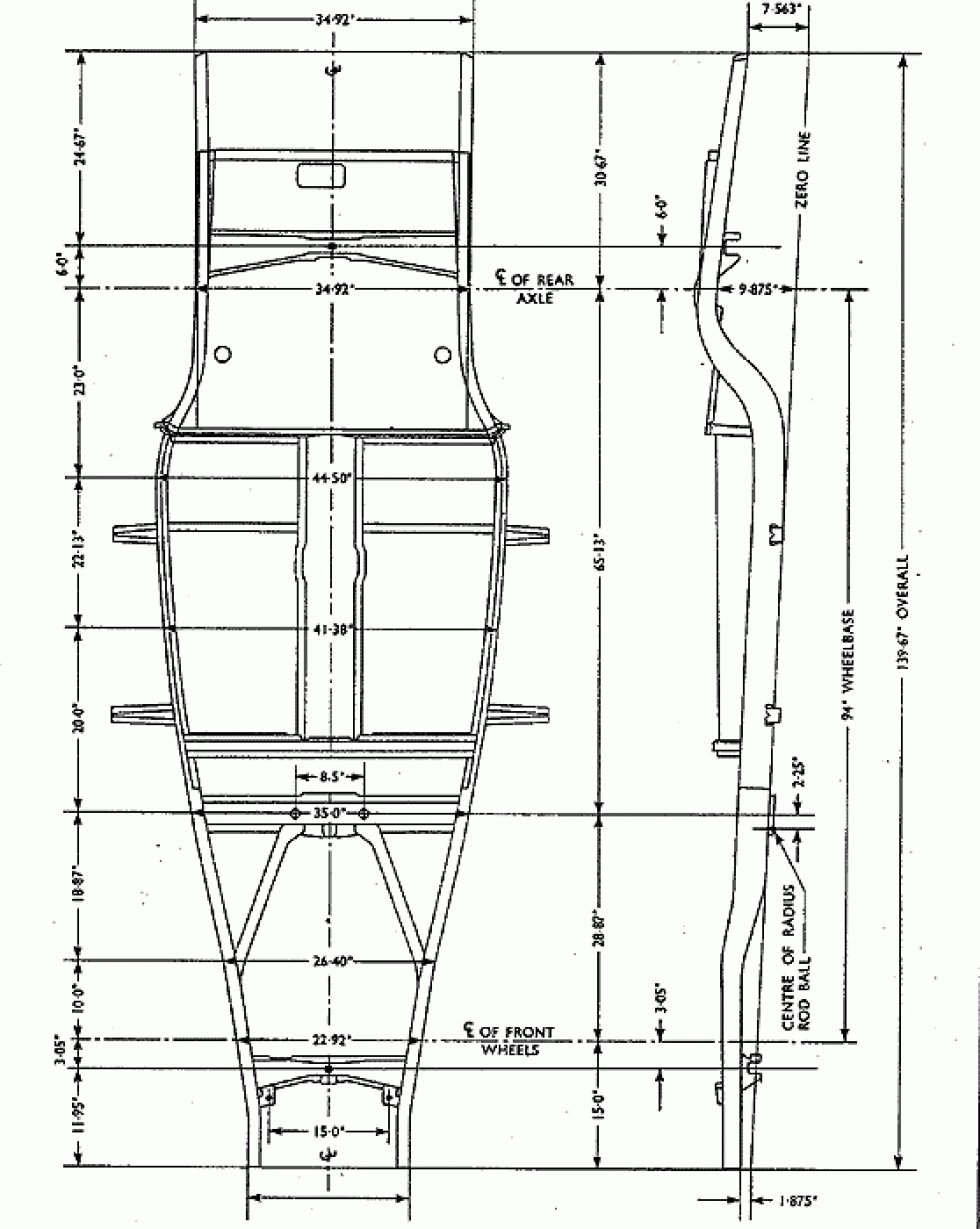

chassis frame layout Prefect

(click to open full sized in new window)

For identification purposes only, reproduced from Ford Motor Company parts list book.

Parts Shown

Applies to Vehicles

Ford Ten, Model 7W (1937 to 1939)
Ford Prefect, Model E93A (1939 to 1948)
Ford Prefect, Model E493A (1949 to 1953)
